Stromleser TTL

Stromleser TTL Overview

This guide covers installation, configuration, and scripting for Stromleser TTL read heads to monitor one or multiple electricity meters.

What is Stromleser TTL?​

  • Infrared (IR) read head for digital electricity meters.
  • Reads data via the optical (D0) interface and converts it to TTL serial data.
  • Can be connected to microcontrollers, WiFi modules or smart home systems.
  • Supports monitoring multiple meters: can read data from up to 4 meters using several TTL read heads on a single base station.

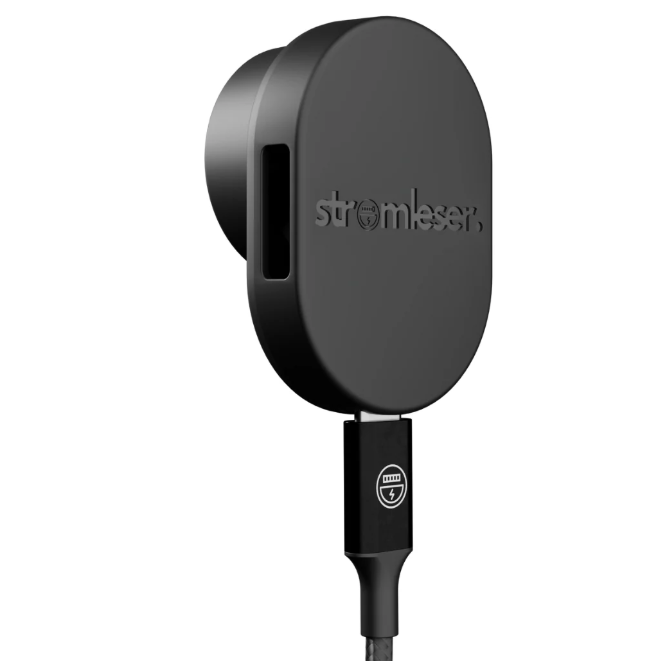

Overview of the Stromleser TTL read head

Main Use Cases​

  • Real-time energy monitoring.
  • Smart home integration for automation and energy management.
  • Monitoring of multiple meters simultaneously (main meter, PV meter, tariff meter).
Example of real-time monitoring Example of smart home integration

Benefits​

  • Non-invasive: Reads meters without opening or modifying them.
  • Cost-efficient: One base station can read multiple meters.
  • Real-time data: Continuous measurements for accurate energy tracking.
  • Scalable & centralized: Easily extendable, data can be displayed in one unified dashboard.

Applications​

  • Household and commercial energy monitoring.
  • Smart home automation.
  • PV system monitoring.

Package Contents​

  • Stromleser TTL read head
  • TTL cable (1 meter)
  • Quick installation guide

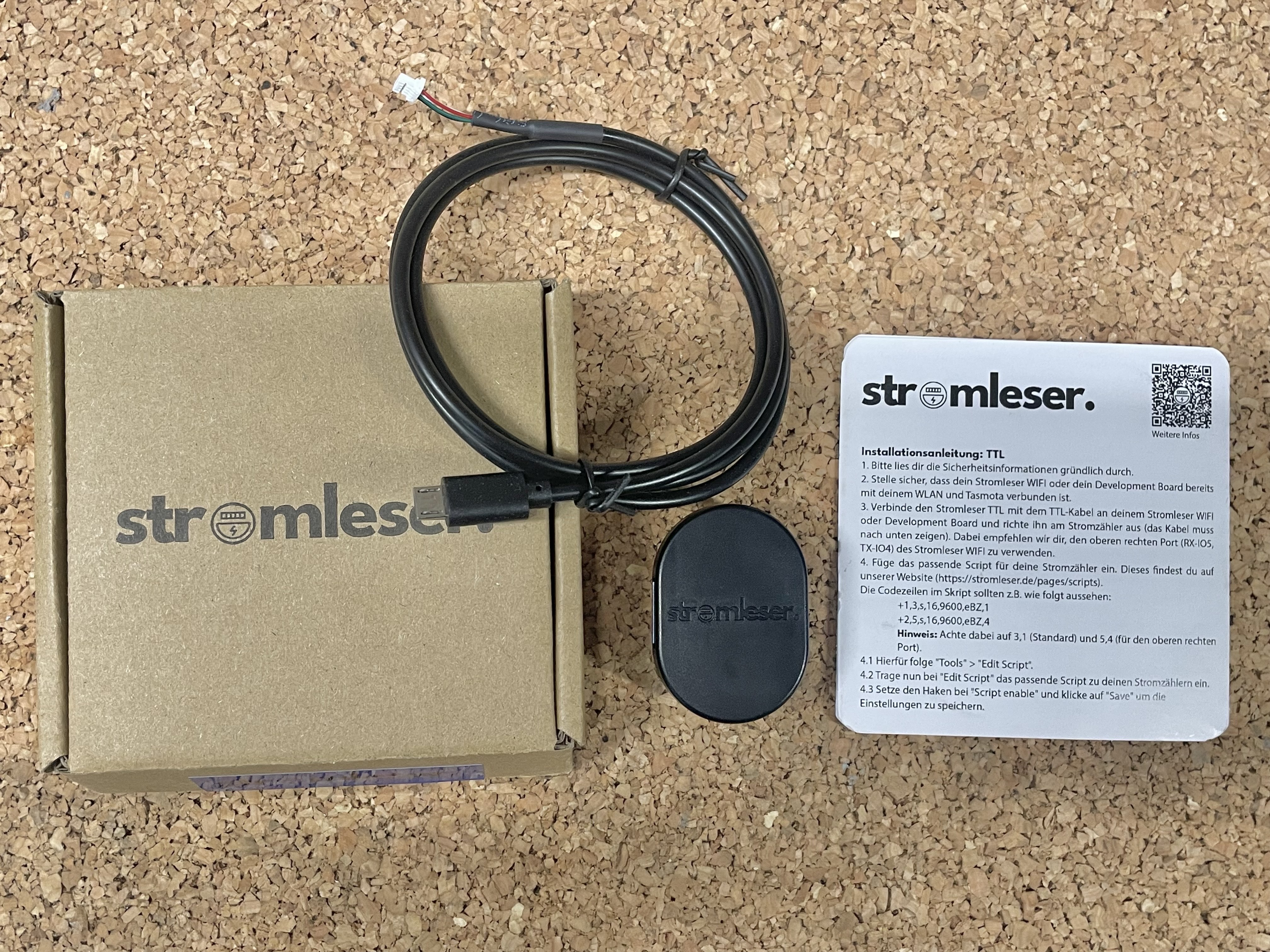

Package contents of the Stromleser TTL
