Stromleser TTL
Stromleser TTL Overview
This guide covers installation, configuration, and scripting for Stromleser TTL read heads to monitor one or multiple electricity meters with the stromleser.tasmota 2.
What is Stromleser TTL?
- Infrared (IR) read head for digital electricity meters.
- Reads data via the optical (D0) interface and converts it to TTL serial data.
- Can be connected to microcontrollers, WiFi modules or smart home systems.
- Supports monitoring multiple meters: the stromleser.tasmota 2 has 2 TTL ports. Together with the built-in read head, it reads up to 3 meters at the same time.
TTL Ports of the stromleser.tasmota 2
| Port | RX GPIO | TX GPIO | Meter |
|---|---|---|---|
| Default port (internal, built-in read head) | IO3 | IO1 | 1st meter |
| TTL1 | IO5 | IO4 | 2nd meter |
| TTL2 | IO7 | IO6 | 3rd meter |
Main Use Cases
- Real-time energy monitoring.
- Smart home integration for automation and energy management.
- Monitoring of multiple meters simultaneously (main meter, PV meter, tariff meter).
Benefits
- Non-invasive: Reads meters without opening or modifying them.
- Cost-efficient: One base station can read multiple meters.
- Real-time data: Continuous measurements for accurate energy tracking.
- Scalable & centralized: Easily extendable, data can be displayed in one unified dashboard.
Applications
- Household and commercial energy monitoring.
- Smart home automation.
- PV system monitoring.
Package Contents

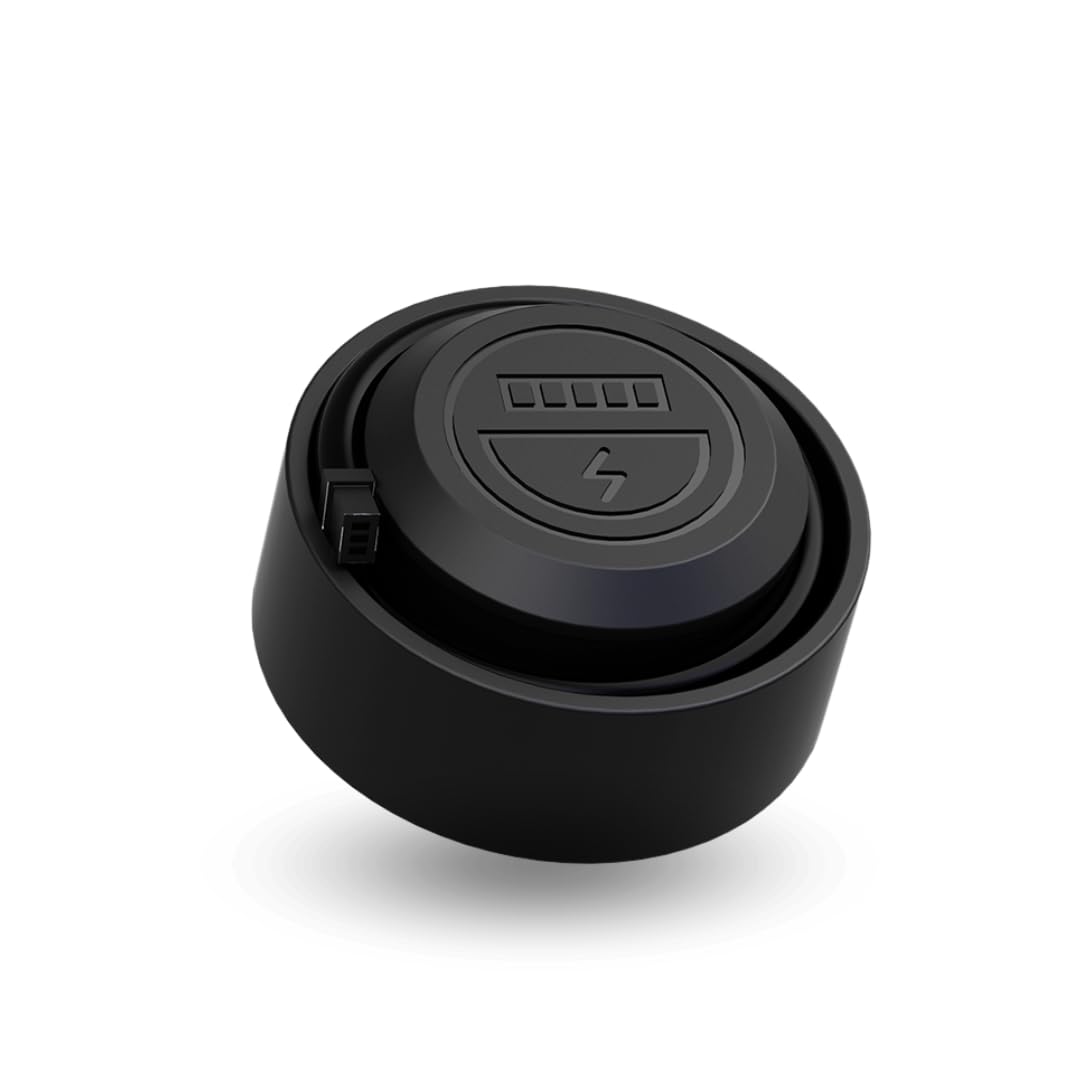

- Stromleser TTL read head
- TTL cable (1 meter)
- Quick installation guide
