Mounting

Easy Installation

The installation is fully magnetic, requires no intervention in the electrical wiring, and takes only a few minutes.

Connect Stromleser to Meter​

Securely attach Stromleser to the optical interface of your meter.

Place the metal disc on the meter surface.

Metal disc placement

Magnetically attach the reader to the disc.

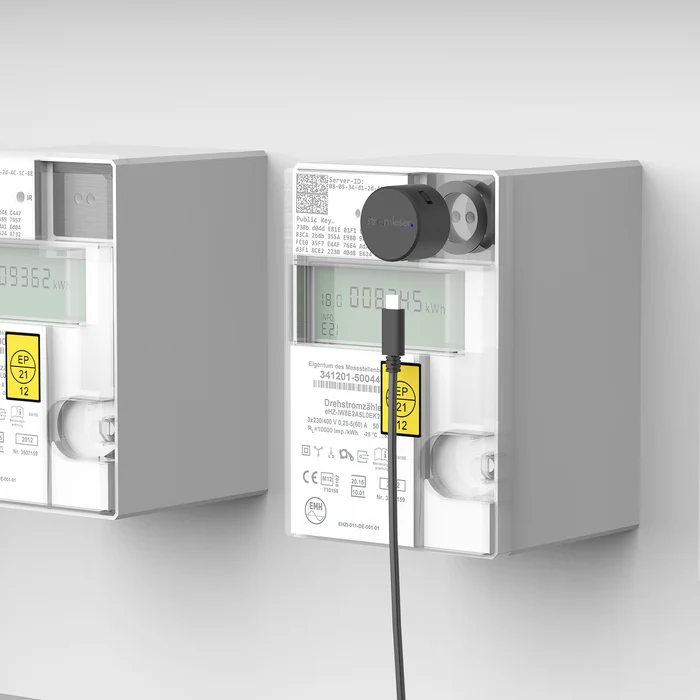

stromleser.tasmota 2 magnetically attached to the meter

Align LED with sensor. If readings are not detected, adjust rotation (30°) or tilt (up to 45°).

Next Step​

After successful mounting, continue with the WiFi setup.
